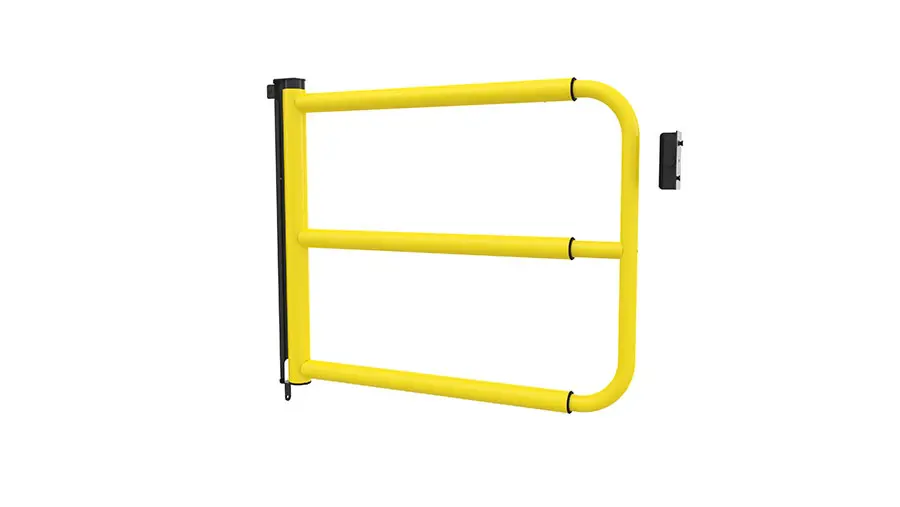

Self-closing swing gate

3D

For Axelent X-Rail fall protection, we offer an adjustable-width gate with self-closing mechanism. It is meant to be installed in front of stairs or ladders leading onto a platform or walkway. Coming from the stair or ladder the operator pushes it open toward the platform. After passing the gate...

Vraag hier uw offerte aan

Modellen

CAD Artikel Omschrijving Kleur
T01-50 X-Rail self-closing swing gate Zink geel (RAL 1018)

Downloads

T01-50

Montagehandleiding

X-Rail Fall protection

Brochure

X-Rail Fall Protection technical

Productinformatie

X-Rail Fall protection

Montagehandleiding

Technische specificaties

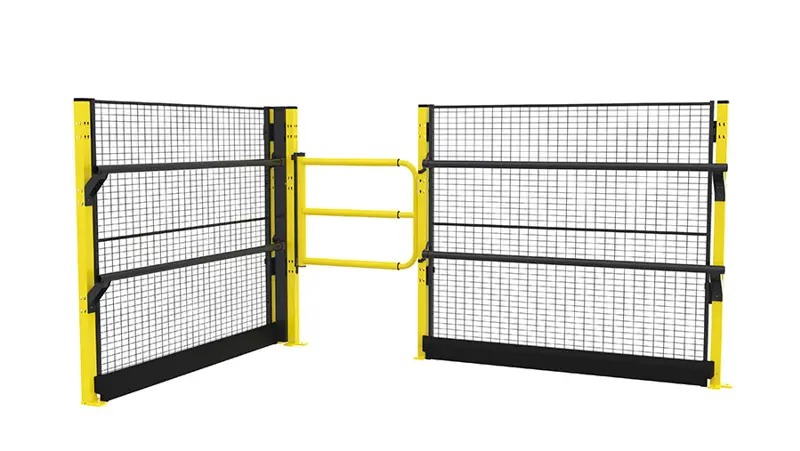

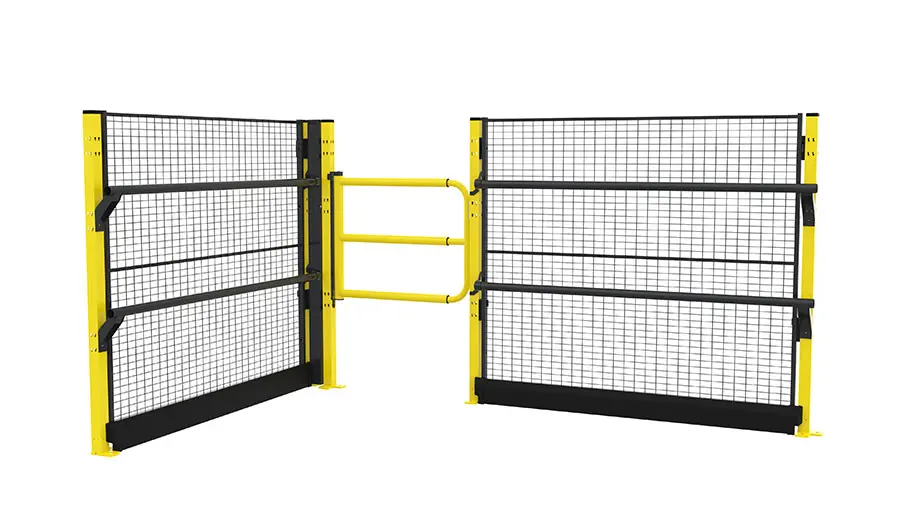

For Axelent X-Rail fall protection, we offer an adjustable-width gate with self-closing mechanism. It is meant to be installed in front of stairs or ladders leading onto a platform or walkway. Coming from the stair or ladder the operator pushes it open toward the platform. After passing the gate it softly closes and then serves as fall protection. The opening dimension can easily be adjusted between 690 and 1210 mm by means of telescoping bars. The gate is delivered complete and pre-assembled in a specially adapted packaging. It is easy to attach to the posts in the X-Rail range and can be used with right or left hinging.

The gate meets the requirements for use as fall protection. To attract attention and be clearly distinguishable from the guard railing, the gate is painted in a highlight colour. To prevent pinching,  infill pieces are available as accessories to create space between the gate and the guard railing, for example in connection in an internal corner.

Gerelateerde artikelen
Een combinatie van palen, panelen, leuningen en schopplaten. Allemaal van één leverancier!

22 jun. 2023 • Logistiek & Veiligheid, Infographic, Valbeveiliging

Een combinatie van palen, panelen, leuningen en schopplaten. Allemaal van één leverancier!
The reasons to choose our fall protection X-Rail

20 jun. 2023 • Logistiek & Veiligheid, Artikel, Valbeveiliging

The reasons to choose our fall protection X-Rail

Gerelateerde producten

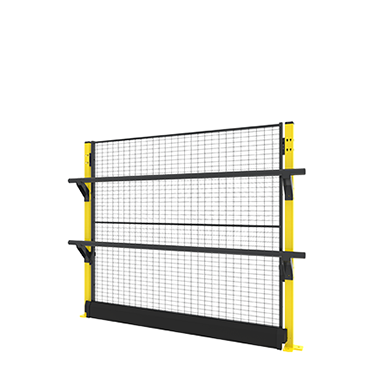

Hoogte 1400 mm met paneel

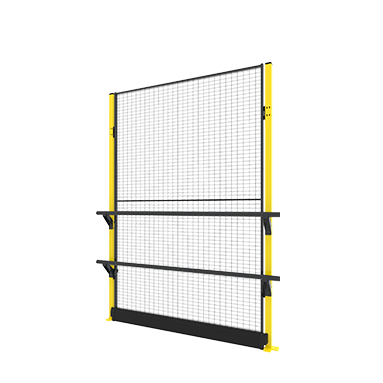

Hoogte 2300 mm met paneel
