X-Rail Valbeveiliging hoogte 1400 mm

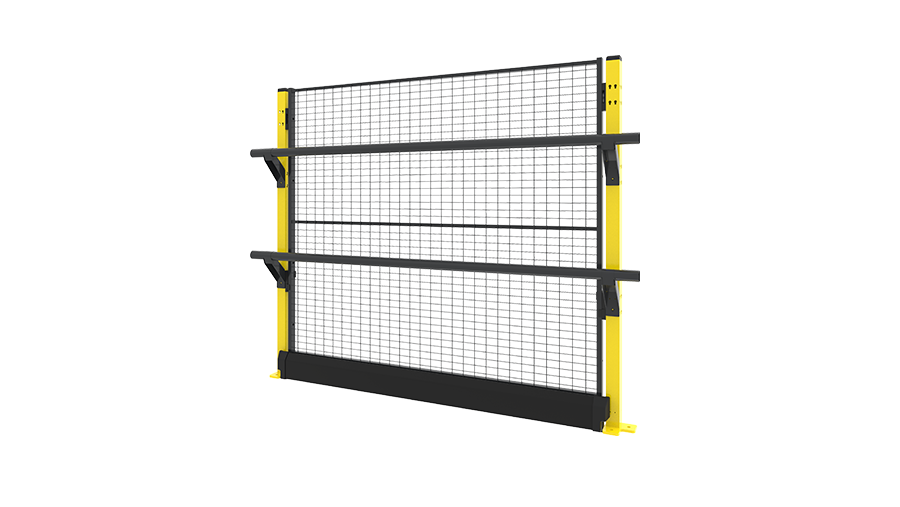

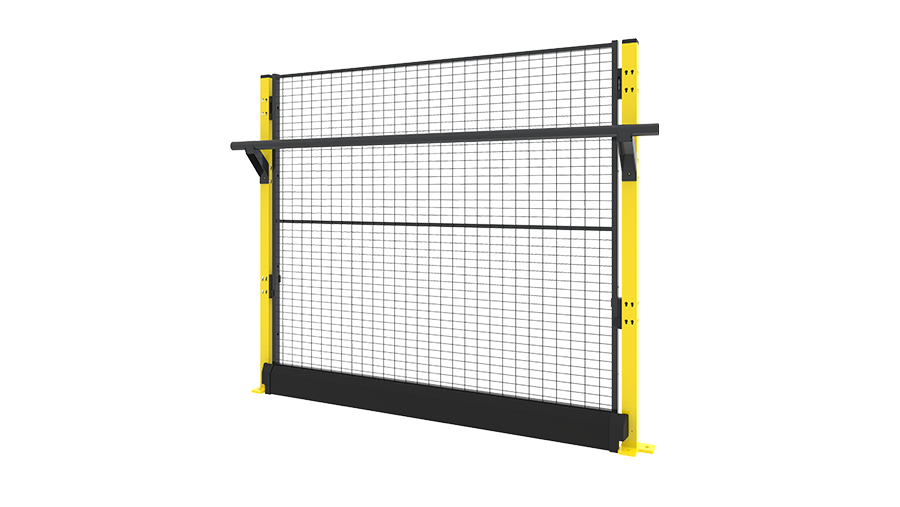

Height 1400 mm with panel

3D

Our X-Rail fall protection system can be used as an edge protection for mezzanine floors. The system is a modification of our X-Guard range and therefore the system can fill dual purposes, mezzanine protection and machine guarding.

Vraag hier uw offerte aan

Modellen

  • Panelen

    13 Artikelen
    CAD Artikel Breedte (mm) Hoogte (mm) Kleur
    W322-130025 250 1300 Grafiet zwart (RAL 9011)
    W322-130040 400 1300 Grafiet zwart (RAL 9011)
    W322-130050 500 1300 Grafiet zwart (RAL 9011)
    W322-130060 600 1300 Grafiet zwart (RAL 9011)
    W322-130070 700 1300 Grafiet zwart (RAL 9011)
    W322-130080 800 1300 Grafiet zwart (RAL 9011)
    W322-130090 900 1300 Grafiet zwart (RAL 9011)
    W322-130100 250 1000 Grafiet zwart (RAL 9011)
    W322-130110 1100 1300 Grafiet zwart (RAL 9011)
    W322-130120 1200 1300 Grafiet zwart (RAL 9011)
    W322-130130 1300 1300 Grafiet zwart (RAL 9011)
    W322-130140 1400 1300 Grafiet zwart (RAL 9011)
    W322-130150 1500 1300 Grafiet zwart (RAL 9011)
  • Posts 50x50mm

    1 Artikelen
    CAD Artikel Hoogte (mm) Kleur
    P1170-140 1400 Zink geel (RAL 1018)

Downloads

X-Rail Anchor Bolt

Montagehandleiding

List of fastening materials for X-Rail

Productinformatie

Combination option for Counter plate

Productinformatie

X-Rail Fall protection

Brochure

X-Rail Fall Protection technical

Productinformatie

X-Rail Fall protection

Montagehandleiding

Technische specificaties

Our X-Rail fall protection system can be used as an edge protection for mezzanine floors. The system is a modification of our X-Guard range and therefore the system can fill dual purposes, mezzanine protection and machine guarding.

X-Rail 1400 mm can be used either without panels or with X-Guard Classic mesh panels.

Note! If no panel is used between the posts – Handrail, Knee rail and kick plate are used. If a panel is used between the posts, only the handrail and kickplate is mandatory.
